Diamond dry cutting saw blades - super thin continuous & fish scale rim

item No : CCSB-05
Diameter: 105mm-230mm
Bore: 20/22.23mm
Segment height: 10mm
Segment type: super thin continuous & fish scale rim
Production process: hot-press sintered

Inquiry Now

Detailed Description

Inquiry Now

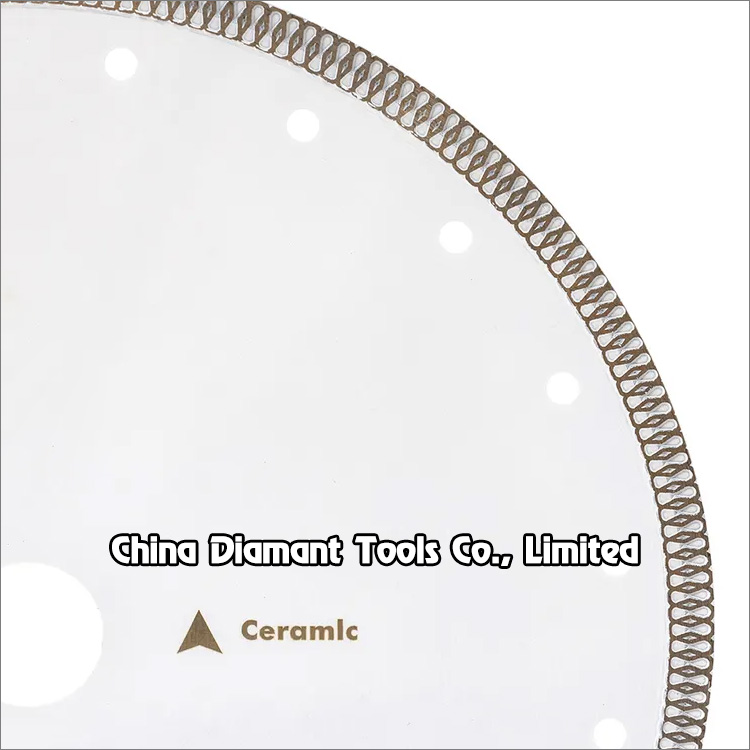

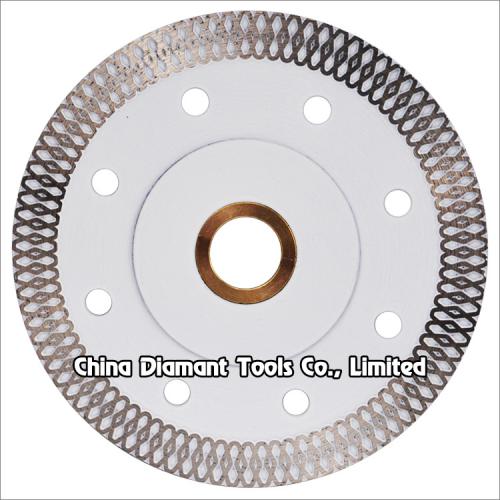

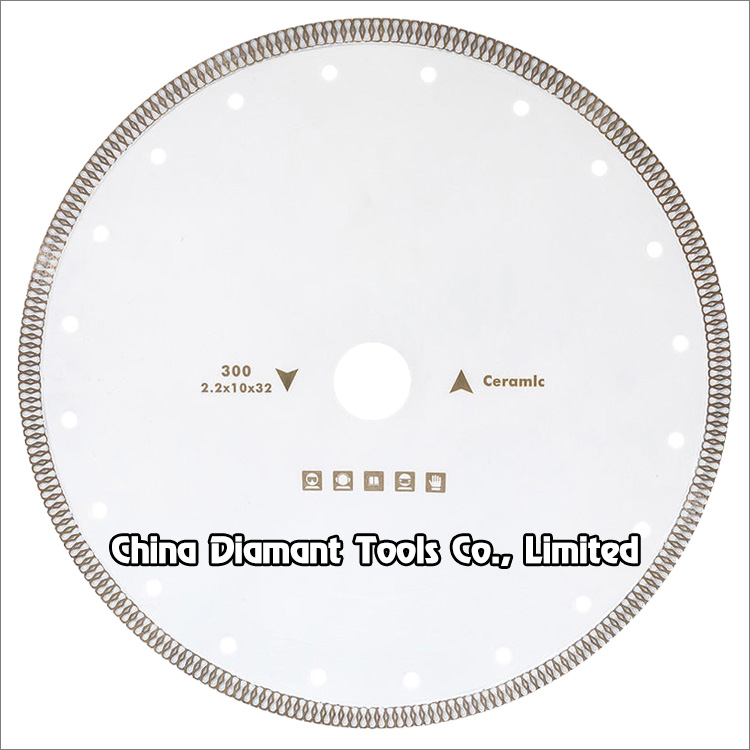

Diamond dry cutting saw blades - hot-press sintered, super thin continuous & fish scale rim

Super thin hot press sintered diamond saw blades with with continuous & fish scale rim segments for cutting ceramic, porcelain, tile, masonry, marble, and soft stone, fast cutting speed with less chips.

Steel Core Type: thicker of central part.

Dry or wet use, water coolant is benefit for longer cutting life.

Usually used on: angle grinders, table saws, handheld saw machines.

Bore size: 15.88mm(5/8"), 20.00mm, 22.23mm(7/8"), 25.4mm or as per demand.

Production process: hot-press sintered.

Code No.	Diameter	Segment size (W*H)mm
CCSB-05-105	105mm(4")	1.4*10mm
CCSB-05-115	115mm(4-1/2")	1.4*10mm
CCSB-05-125	125mm(5")	1.4*10mm
CCSB-05-150	150mm(6")	1.8*10mm
CCSB-05-180	180mm(7")	1.8*10mm
CCSB-05-200	200mm(8")	1.8*10mm
CCSB-05-230	230mm(9")	2.0*10mm

The above specifications & photos are for reference, other specification may be available as per demand.
