Diamond dry cutting saw blades - continuous rim segments with J slots

item No : DCHS-09
Diameter: 105-300mm
Bore: 20/22.23mm
Segment height: 10mm
Segment type: continuous rim with J slots
Production process: hot-press sintered

Inquiry Now

Detailed Description

Inquiry Now

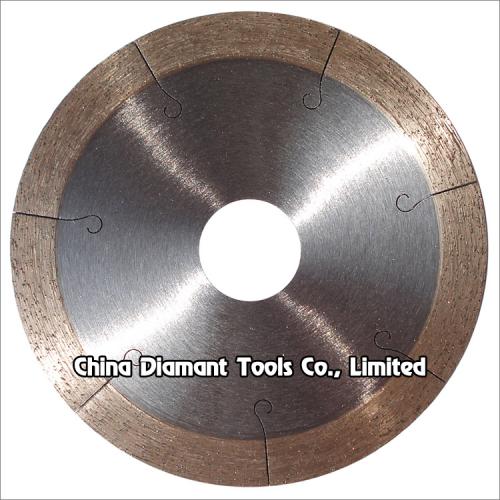

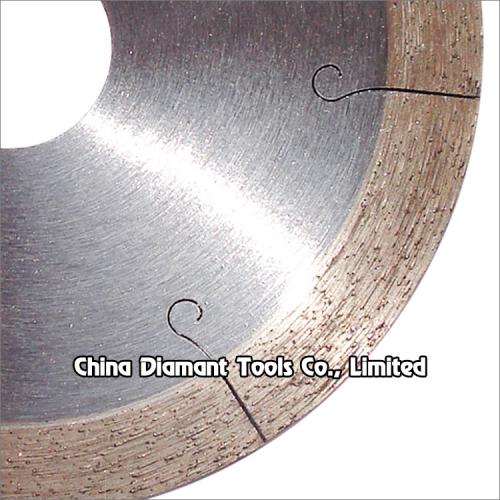

Diamond dry cutting saw blades - hot-press sintered, continuous rim segments with J(fishhook) slot segments

Hot press sintered diamond saw blades with continuous rim laser cut J slot segments for fast dry cutting various hard, medium, soft stone such as granite, marble, sandstone, limestone, etc. without water or with less water. J slot is benefit for fast coolant.

Also we can make the segments bond for general cutting of other materials such as concrete, asphalt, ceramic, bricks, etc..

Dry or wet use, water coolant is benefit for longer cutting life.

Usually used on: angle grinders, table saws, handheld saw machines.

Bore size: 15.88mm(5/8"), 20.00mm, 22.23mm(7/8") or as per demand.

Production process: hot-press sintered.

Code No.	Diameter	Segment size (W*H)mm
DCHS-09-105	105mm(4")	2.0*10mm
DCHS-09-115	115mm(4.5")	2.0*10mm
DCHS-09-125	125mm(5")	2.2*10mm
DCHS-09-150	150mm(6")	2.4*10mm
DCHS-09-180	180mm(7")	2.6*10mm
DCHS-09-200	200mm(8")	2.6*10mm
DCHS-09-230	230mm(9")	2.8*10mm
DCHS-09-250	250mm(10")	2.8*10mm
DCHS-09-300	300mm(12")	3.0*10mm

The above specifications & photos are for reference, other specification may be available as per demand.
