Diamond dry cutting saw blades - hot-press sintered, crown segments
Diameter: 114mm-230mm
Bore: 20/22.23/25.4mm
Segment height: 15mm
Segment type: crown segments
Production process: hot-press sintered
Diamond dry cutting saw blades - hot-press sintered, crown segments

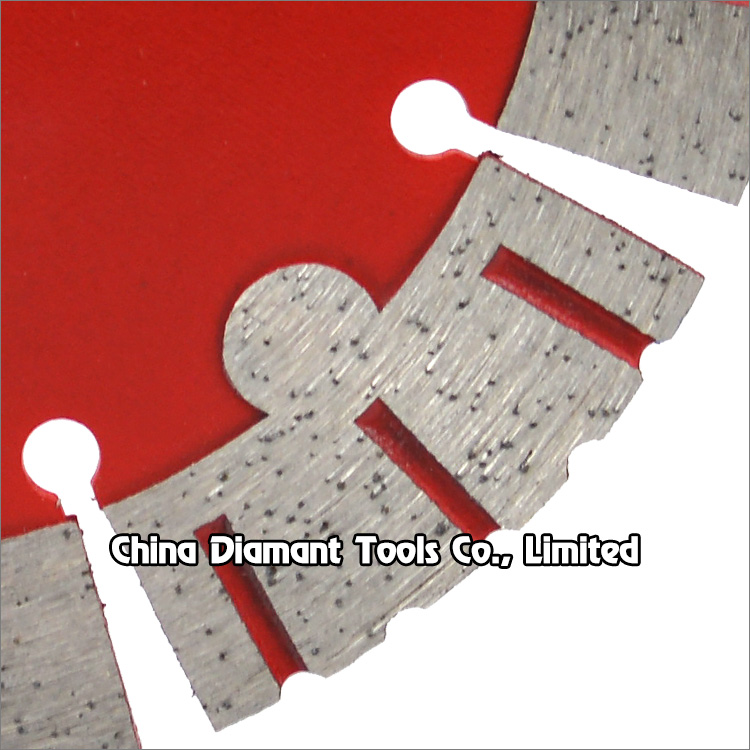

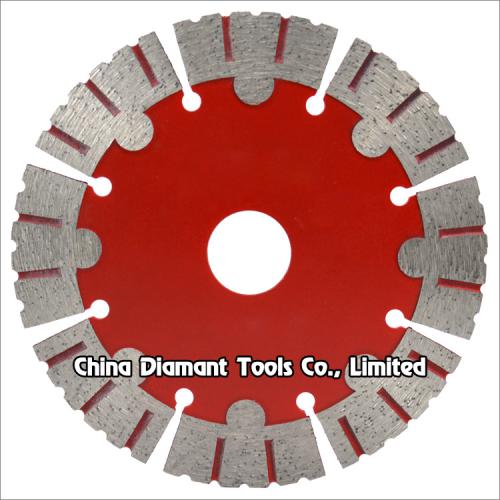

Hot press sintered diamond saw blades with crown & turbo segments for fast dry cutting various materials such as stone, concrete, asphalt, ceramic, bricks, etc. without water or with less water.
This type blade is usually for decoration workers to cut grooves of wall or floor.
Dry or wet use, water coolant is benefit for longer cutting life.

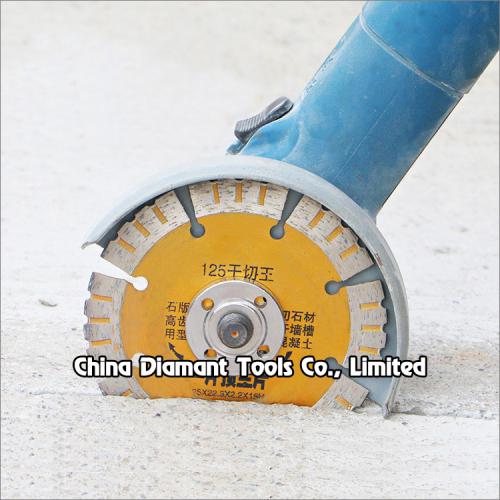

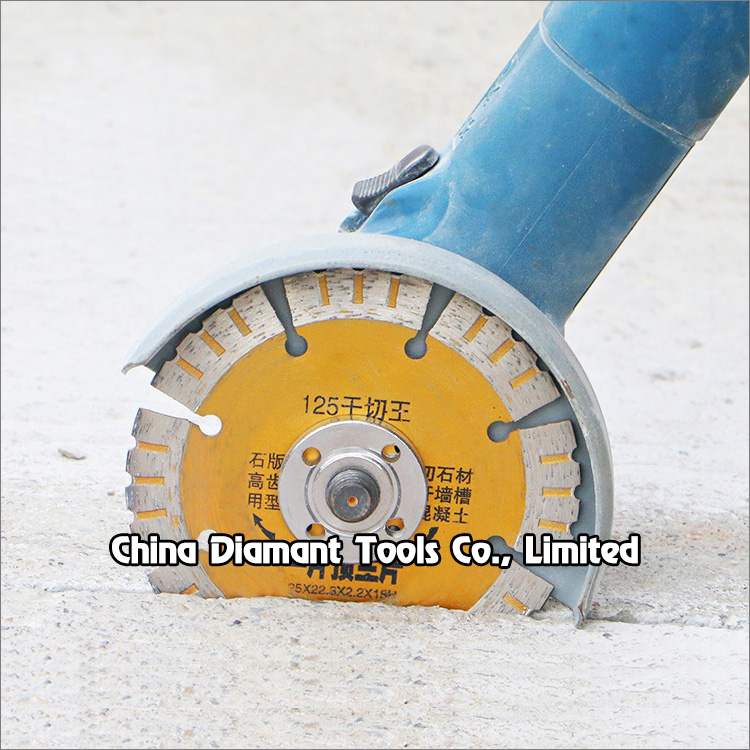

Usually used on: angle grinders, table saws, handheld saw machines.
Bore size: 15.88mm(5/8"), 20.00mm, 22.23mm(7/8") or as per demand.
Production process: hot-press sintered.
|
Code No. |
Diameter |
Segment size (W*H)mm |
|
DCHS-05-105 |
105mm(4") |
x |
|
DCHS-05-114 |
114mm(4.5") |
2.0*15mm |
|
DCHS-05-125 |
125mm(5") |
2.0*15mm |
|
DCHS-05-150 |
150mm(6") |
2.2*15mm |
|
DCHS-05-180 |
180mm(7") |
2.2*15mm |
|
DCHS-05-200 |
200mm(8") |
2.4*15mm |
|
DCHS-05-230 |
230mm(9") |
2.6*15mm |
The above specifications & photos are for reference, other specification may be available as per demand.
