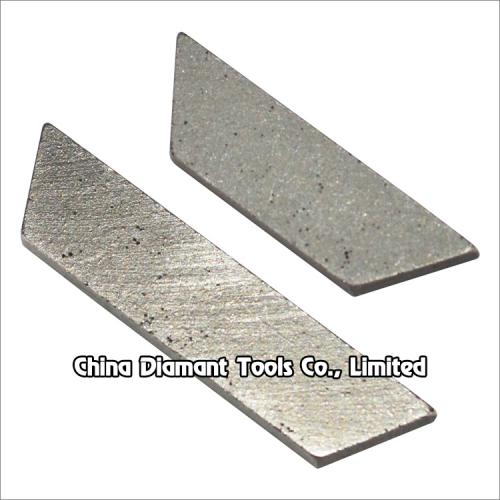

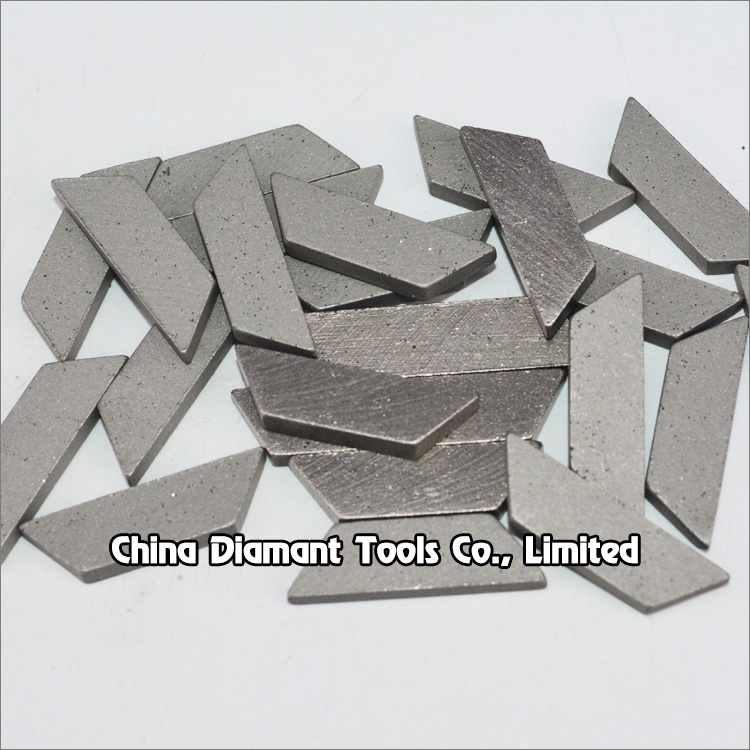

Diamond segments of gangsaw for marble block cutting - trapezoid type

item No : DSM-GS-02
Segment shape: trapezoid
Segment size: H8.5mm or 9.0mm
Materials cutting: marble,soft stone
Production process: hot-press sintered
Welding type: fire welding / high-frequency welding
Inquiry Now
Detailed Description

Diamond segments of gangsaw (frame saw blades) for marble block cutting - trapezoid shape


This type diamond segments is usually for cutting abrasive marble or marble with lots of cavities.

Usually there are 60-80pcs blades of one gang saw machine..

Welding method: fire welding or high-frequency welding with silver brazing materials.





Code No.

Taper Segment

LxWxH(mm)

Steel Core Thickness

Purpose

DSM-GS-02S

18/29x3.0/3.5/4.0/4.5x8.5

2.5/3.0/3.5mm

Block slabs cutting

DSM-GS-02L

30/40x3.0/3.5/4.0/4.5x9.0

2.5/3.0/3.5mm

Block slabs cutting


The above specifications & photos are for reference, other specification may be available as per demand.
