Diamond segments of circular saw blade for marble soft stone block cutting

item No : DSMB-01
For diameter: 900-2000mm
Segment size: H8/10/12mm
Materials cutting: marble,limestone,soft stone
Production process: hot-press sintered
Welding type: high-frequency silver welding

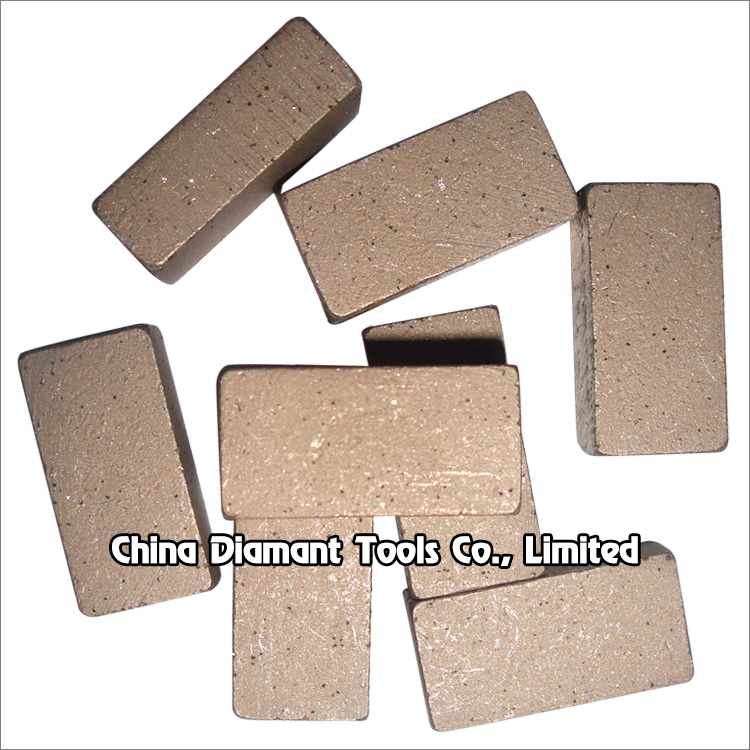

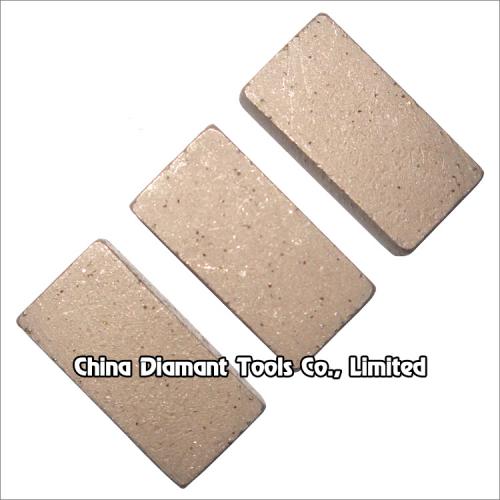

Diamond segments of circular saw blade for marble soft stone block cutting

Sandwich structure, box shape



Diamond Segment with sandwich structure and box shape of 900-2000mm circular saw blades for block cutting of marble, limestone, slate, various soft stone without quartz.

Wet use only with sufficient water, coolant material put into water is benefit for fast cutting.

Welding method: by high frequency silver welding.



Code No.

Diameter

(mm)

Segment Dimension

(L×W×H)mm

Segment No.

DSMB-01-0900 900 24/30/40x6.5x8/10/12 64
DSMB-01-1000 1000 24/30/40x7.0x8/10/12 70
DSMB-01-1200 1200 24/30/40x7.5x8/10/12 80
DSMB-01-1350 1350 24/30/40x8.0x8/10/12 88
DSMB-01-1400 1400 24/30/40x8.5x8/10/12 96
DSMB-01-1600 1600 24/30/40x9.0x8/10/12 108
DSMB-01-1800 1800 24/30/40x9.5x10/12 120
DSMB-01-2000 2000 24/30/40x10.5x10/12 128


The above specifications & photos are for reference, other specification may be available as per demand.
