Diamond segments of circular saw blade for marble soft stone cutting - fan shape

item No : DSMS-02
For diameter: 300-600mm
Segment size: H8mm
Materials cutting: marble,soft stone
Production process: hot-press sintered
Welding type: high-frequency silver welding

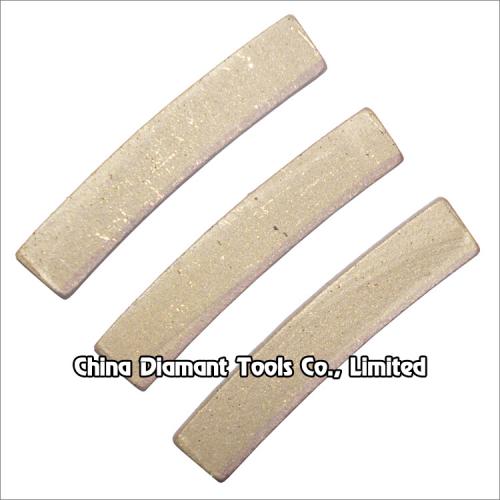

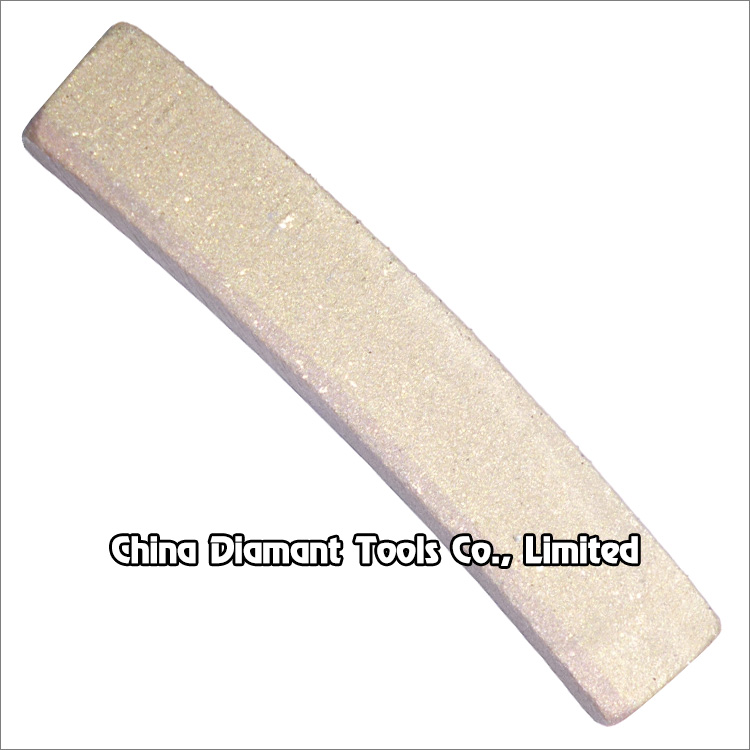

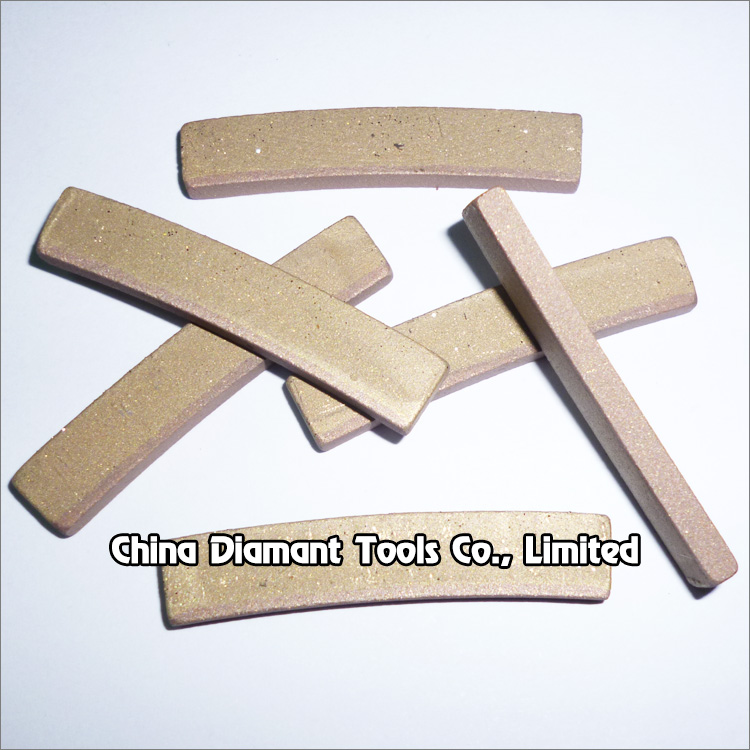

Diamond segments of circular saw blade for marble soft stone cutting - fan shape



What is fan shape: The length of cutting side  is longer than bottom/welding side.

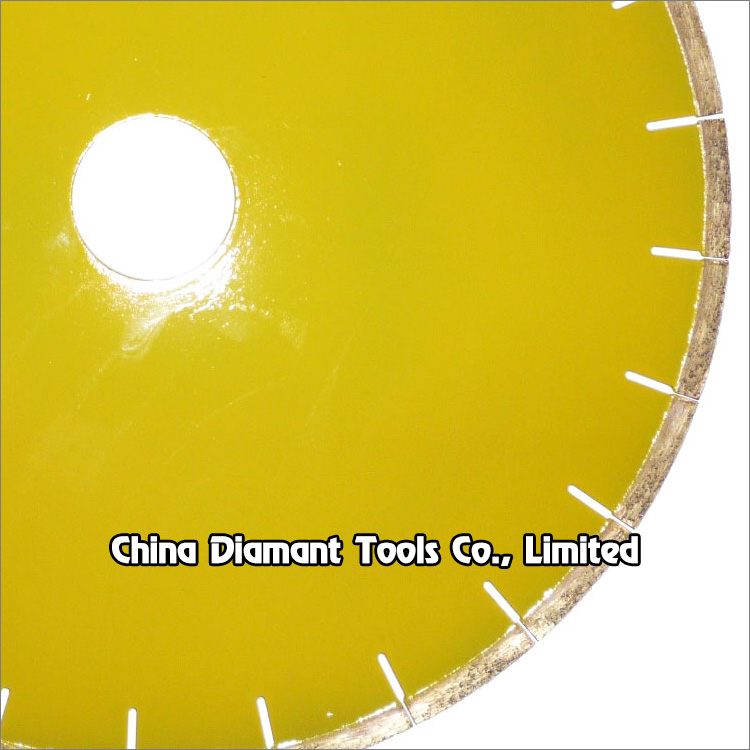

Diamond segment with fan shape of 300-600mm circular saw blades for slab edge cutting of marble, limestone, slate, various soft stone without quartz.


The fan shape is benefit for reducing chips when the blade is cutting the edge of slab.

Wet use only with sufficient water.

Welding method: Silver welding by high frequency welding machine.


Code No.

Diameter

(mm/Inch)

Segment Size

LxWxH(mm)

Segment No.

(pcs/set)

DSMS-02-300

300mm(12")

44.7/42.3x3.0x8

21

DSMS-02-350

350mm(14")

44.7/41.7x3.2x8

25

DSMS-02-400

400mm(16")

42.9/41.2x3.6x8

28

DSMS-02-450 450mm(18") 43.0/41.6x4.0x8

32

DSMS-02-500

500mm(20")

43.0/41.6x4.2x8

36

DSMS-02-600

600mm(24")

44.3/43.0x4.6x8

42


The above specifications & photos are for reference, other specification may be available as per demand.
