Diamond segments of circular saw blades for granite cutting - normal flat shape

item No : DSGS-01
For diameter: 250-800mm
Segment size: H10-20mm
Materials cutting: granite,hard stone
Production process: hot-press sintered
Welding type: high-frequency silver welding

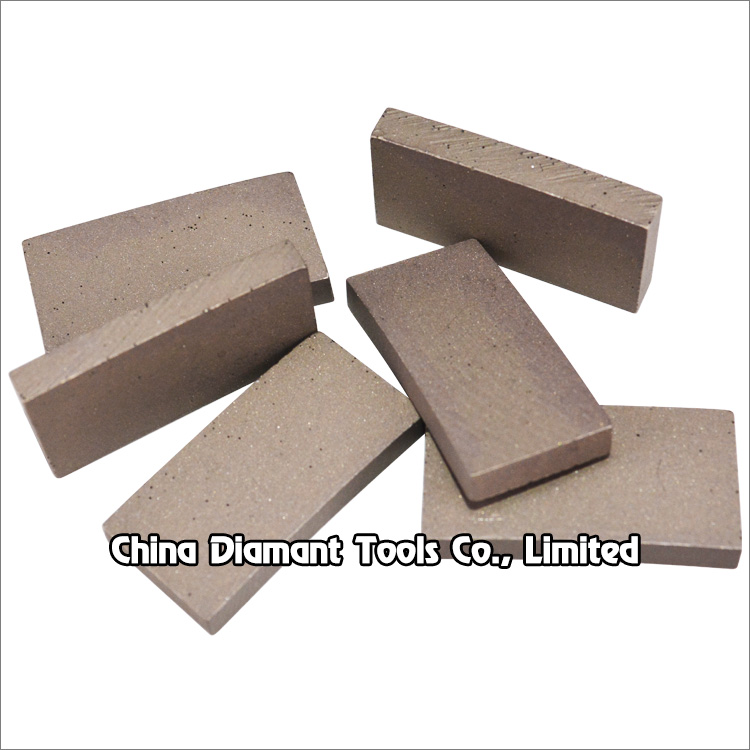

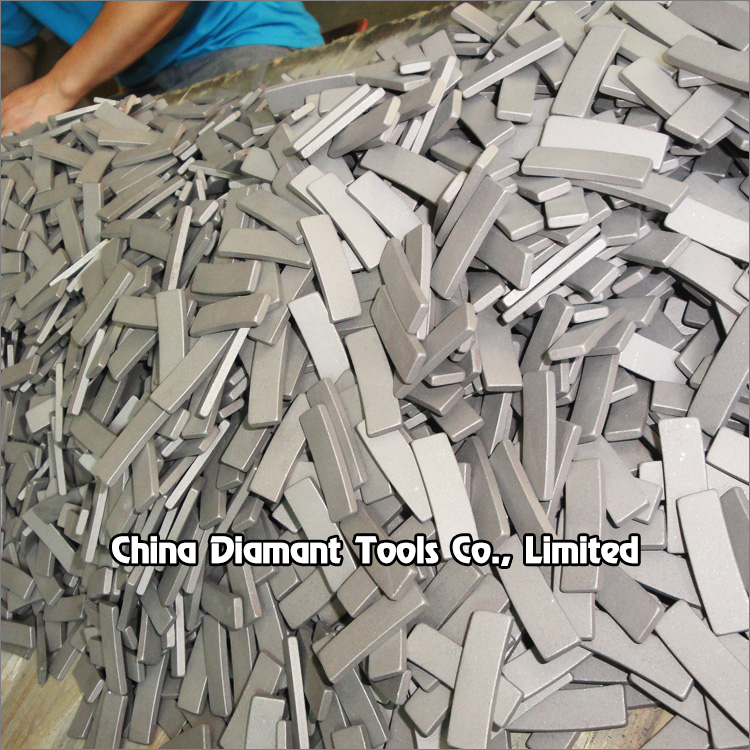

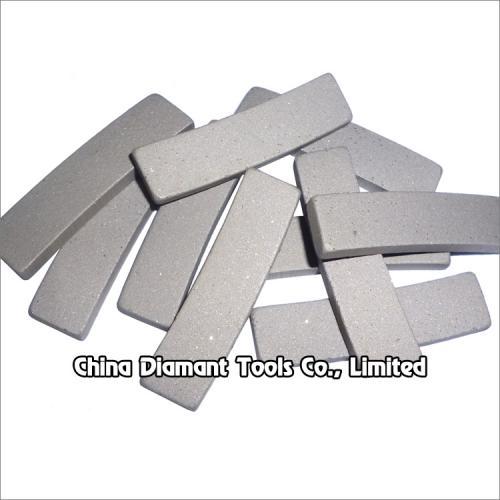

Diamond segments of circular saw blades for granite cutting - normal flat shape

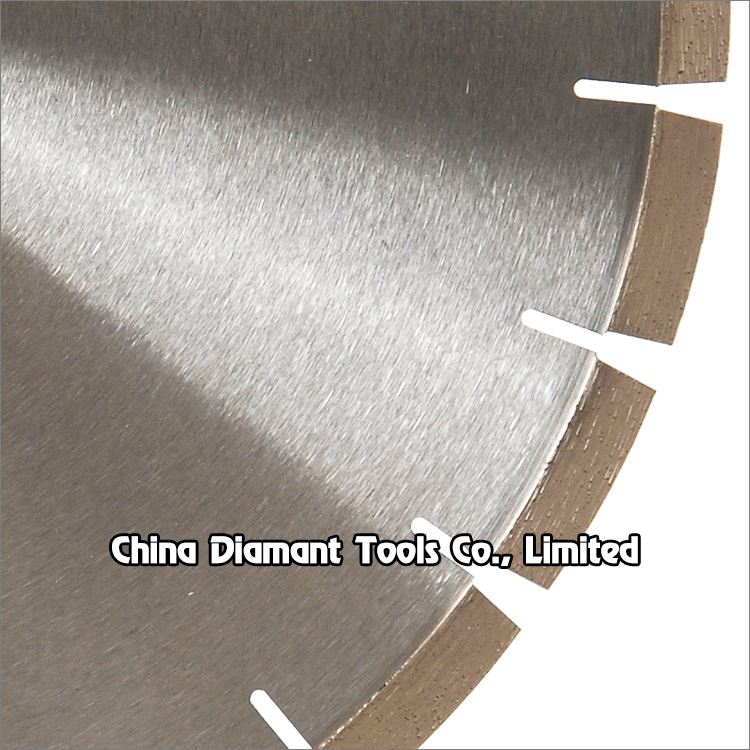

This type diamond segments with normal flat shape of 250-800mm circular saw blades is usually used for slab edge cutting of granite, sandstone, various hard stone with quartz.

Normal flat means speciation is simple and "no grooves/slot or special shapes".


The most demanding sizes of granite cutting segments are for 14”/350mm and 16”/400mm of circular saw blades to cut 2-5cm thickness granite and hard stone slabs or strips.

Wet use only with sufficient water.

Welding method: high-frequency welding.


Code No.

Diameter

(mm/Inch)

Segment Size

(mm)

Segment No.

(pcs/set)

DSGS-01-250

250mm(10")

40x2.8x10

18

DSGS-01-300

300mm(12")

40x3.0x10/12

21

DSGS-01-350

350mm(14")

40x3.2x10/12/15/20

24/25

DSGS-01-400

400mm(16")

40x3.6x10/12/15/20

28

DSGS-01-450

450mm(18") 40x4.0x10/12/15/20

32

DSGS-01-500

500mm(20")

40x4.2x10/12/15/20

36

DSGS-01-550

550mm(22")

40x4.4x10/12/15/20

38

DSGS-01-600

600mm(24")

40x4.6x10/12/15/20

42

DSGS-01-700

700mm(28")

40x5.2x10/12/15/20

50

DSGS-01-750

750mm(30")

40x5.5x10/12/15/20

50

DSGS-01-800

800mm(32")

40x6.0x10/12/15/20

46


The above specifications & photos are for reference, other specification may be available as per demand.
