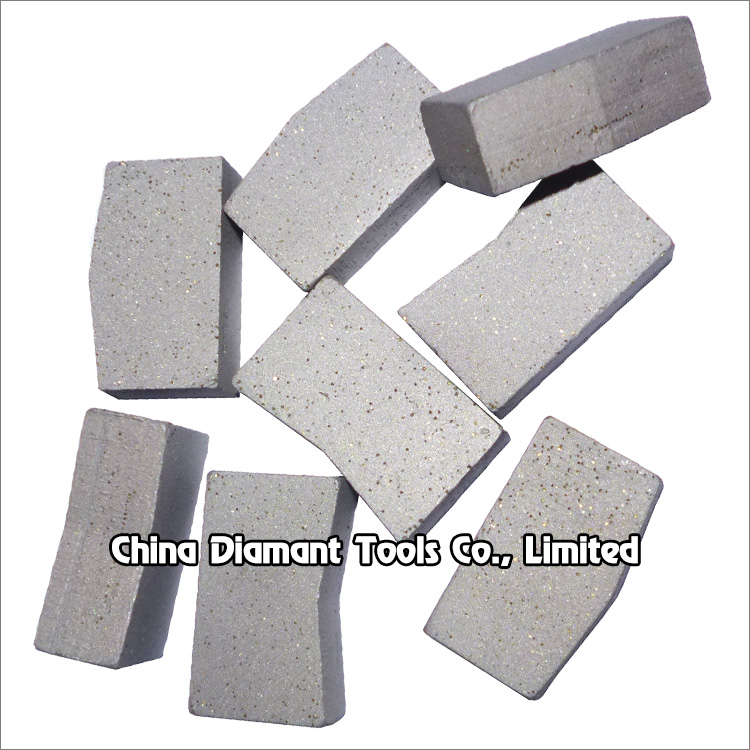

900mm-2200mm diamond segments for granite hard stone block Cutting - taper with raised concave V top

item No : DSGB-03
For diameter: 900-2200mm
Segment size: H15mm
Materials cutting: granite,hard stone
Production process: hot-press sintered
Welding type: high-frequency silver welding

900mm-2200mm diamond segments for granite hard stone block Cutting - taper with raised/concave V top

Multi-layer structure


Diamond segments raised/concave V & taper shape with mulit-layer structure of 900-2200mm circular saw blades for block cutting of granite, sandstone, various hard stone with quartz.

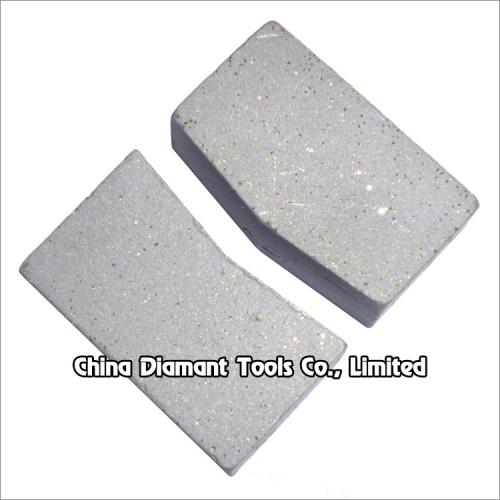

There are 50% raised V shape and 50% concave V shape for one full set segments, V shape is benefit for fast segment opening of initial cutting.


Only one type V shape for full set segments is available.

Suitable for bridge cutting machines, single arm cutting machines.

Wet use only with sufficient watercoolant material put into water is benefit for faster cutting.

Welding method: silver/copper welding by high frequency welding machine.


Code No.

Diameter

(mm)

Segment Dimension

(L×W×H)mm

Segment No.

(pcs/set)

DSGB-03-0900

900

24x7.0/6.5x15

64

DSGB-03-1000

1000

24x7.0/6.5x15

70

DSGB-03-1100

1100

24x7.4/6.8x15

74

DSGB-03-1200

1200

24x7.5/7.0x15

80

DSGB-03-1350

1350

24x8.4/7.7x15

88

DSGB-03-1400

1400

24x8.5/8.0x15

96

DSGB-03-1600

1600

24x9.0/8.4x15

104/108

DSGB-03-1700

1700

24x9.4/8.4x15

112

DSGB-03-1800

1800

24x9.5/9.0x15

120

DSGB-03-2000

2000

24x10.5/9.5x15

128

DSGB-03-2200

2200

24x11.5/10.5x15

132/136


The above specifications & photos are for reference, other specification may be available as per demand.
