Diamond dry cutting saw blades - hot press sintered, normal segments

item No : DCHS-01
Diameter: 105-350mm
Bore: 20/22.23/25.4mm
Segment height: 8mm/10mm
Segment type: normal segmented
Production process: hot-press sintered

Inquiry Now

Detailed Description

Inquiry Now

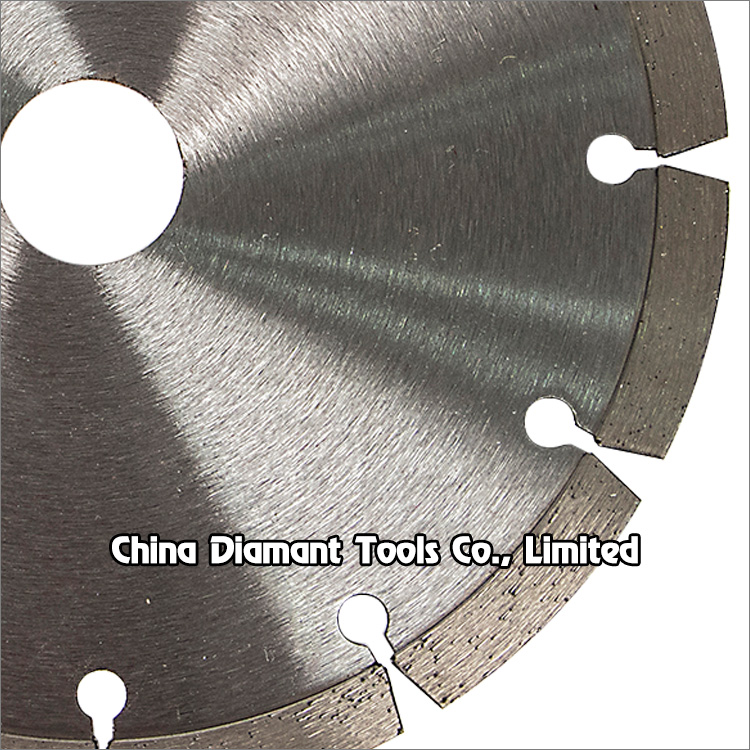

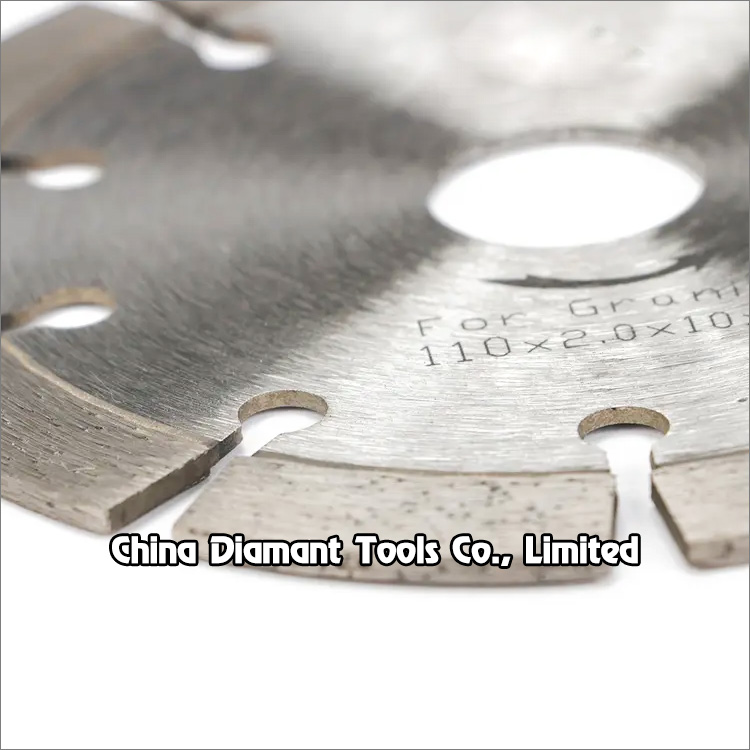

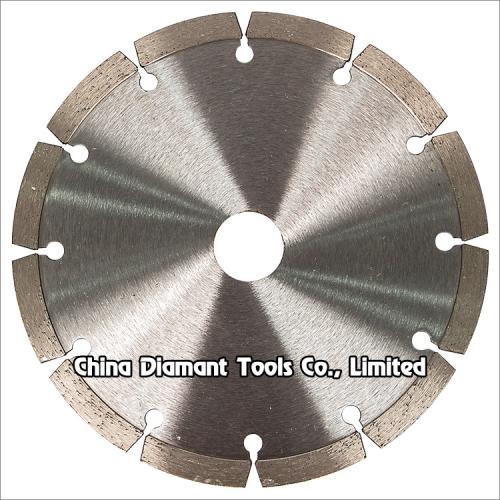

Diamond dry cutting saw blades - hot press sintered, normal segments

Hot press sintered diamond saw blades with normal flat segments for fast dry cutting various hard, medium, soft stone such as granite, marble, sandstone, limestone, etc. without water or with less water.

Also we can make the segments bond for general cutting of other materials such as concrete, asphalt, ceramic, bricks, etc..

Dry or wet use, water coolant is benefit for longer cutting life.

Usually used on: angle grinders, table saws, handheld saw machines.

Bore size: 15.88mm(5/8"), 20.00mm, 22.23mm(7/8") or as per demand.

Production process: hot-press sintered.

Code No.	Diameter	Segment size (W*H)mm	Segment No.
DCHS-01-105	105mm(4")	1.8*8mm	8
DCHS-01-110	110mm(4.25")	1.8/2.0*8/10mm	8/9
DCHS-01-115	115mm(4.5")	2.0*8/10mm	9
DCHS-01-125	125mm(5")	2.0*8/10mm	9/10
DCHS-01-150	150mm(6")	2.2*8/10mm	12
DCHS-01-180	180mm(7")	2.2*8/10mm	14
DCHS-01-200	200mm(8")	2.4*10mm	14
DCHS-01-230	230mm(9")	2.6*10mm	16
DCHS-01-250	250mm(10")	2.6*10mm	18
DCHS-01-300	300mm(12")	3.0*10mm	22
DCHS-01-350	350mm(14")	3.2*10mm	24

The above specifications & photos are for reference, other specification may be available as per demand.
