Diamond saw blades for marble slab cutting - fishhook steel core with fanlike segments
Diameter: 250-350mm
Bore: 50mm,60mm
Body type: normal
Segment height: 10mm
Material cutting: marble,soft stone
Segment structure: sandwich
Production process: high-frequency welded.

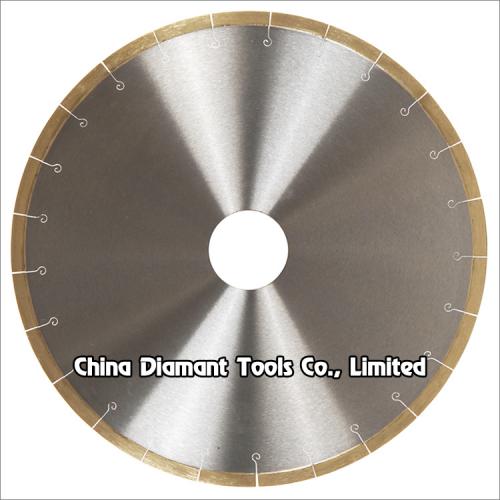

Diamond saw blades for marble slab cutting - fishhook steel core with fanlike segments

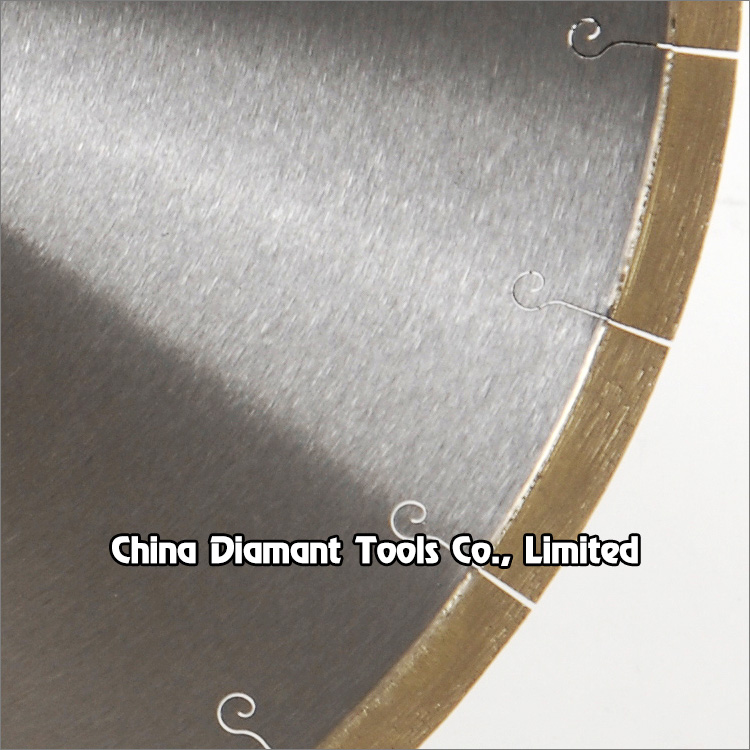

Diamond saw blades with fishhook steel blank and 10mm height fanlike shape segments for slab edge cutting of marble, limestone, slate, various soft stones without quartz, cutting slabs to tiles or as per order request.

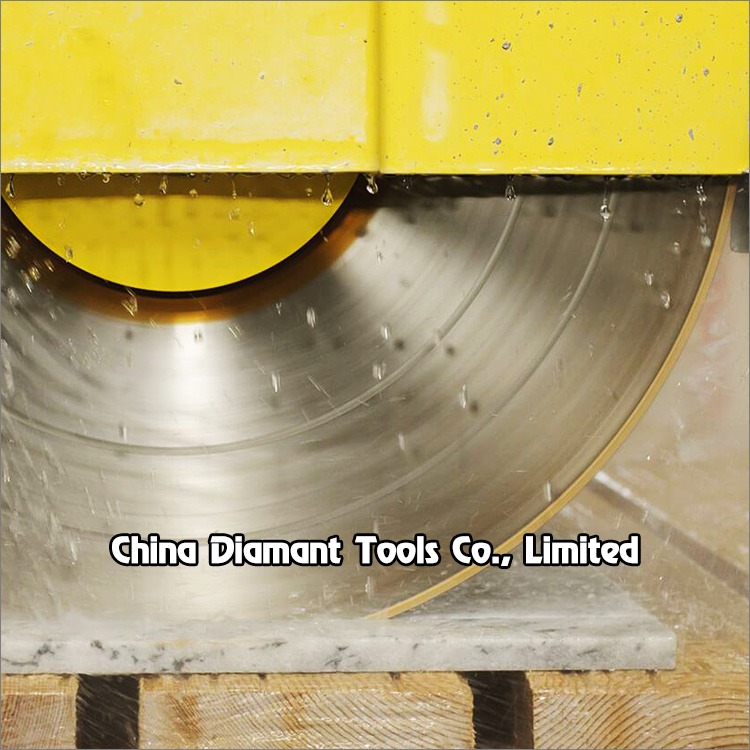

The blades are mostly used on manual edge cutting machines, bridge cutting machines or table cutting machines.
Wet use only with sufficient water.
Segment height: 10mm.
Bore size: 50/60mm, or as per demand.
Welding method: high-frequency welded.
|
Code No. |
Diameter (mm/Inch) |
Segment Height (mm) |
Segment No. (pcs/set) |
|
SBEM-03-250 |
250mm(10") |
10 |
18 |
|
SBEM-03-300 |
300mm(12") |
10 |
21 |
|
SBEM-03-350 |
350mm(14") |
10 |
24/25 |
The above specifications & photos are for reference, other specification may be available as per demand.
