Diamond saw blades for block cutting of marble limestone soft stone

item No : DSB-MBC-01
Diameter: 900-2000mm
Blade type: single blade
Segment height: 10mm,12mm
Material cutting: marble,soft stone
Segment structure: sandwich

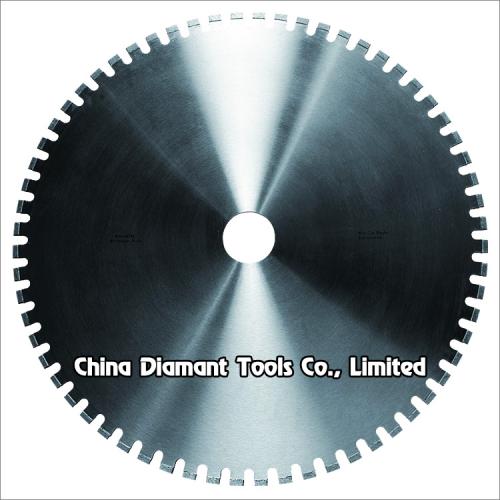

900mm-2000mm diamond saw blades for block cutting of marble limestone soft stone


Diamond segmented circular saw blades of diameter 900-2000mm for block cutting of marble, limestone, slate, various soft stone without quartz.

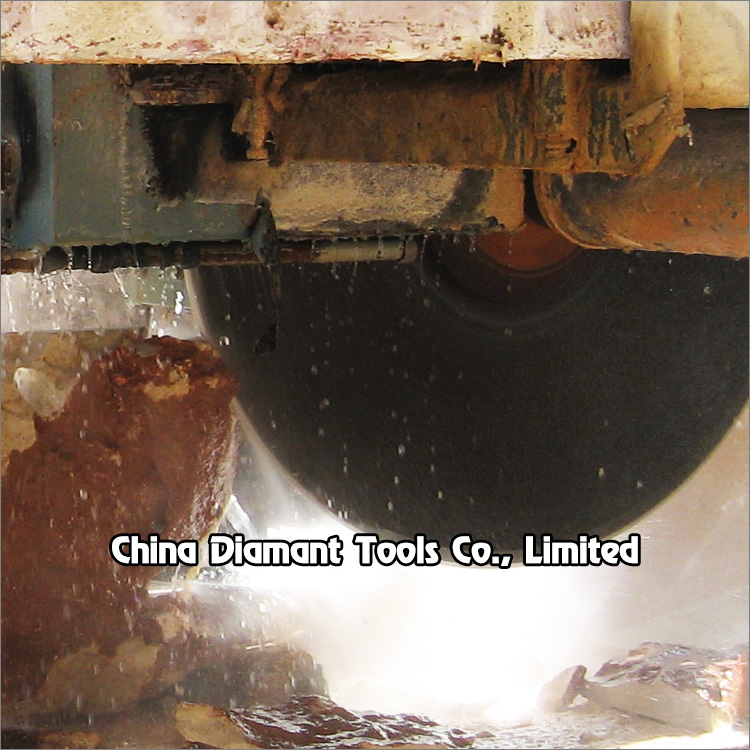

Suitable for bridge block cutter, gantry block cutting machine or single arm stone cutting machines, cutting marble blocks to slabs or tiles (stripes).

Wet use only with sufficient water, fast & smooth cutting, long life, high ratio of performance to price.



Segment structure: sandwich.

Welding method: by high-frequency welding machine.


Code No.

Diameter

(mm)

Segment size

(L×W×H)mm

Segment

No.

DSB-MBC-01-0900

900

24x6.5x8/10/12

64

DSB-MBC-01-1000

1000

24x7.0x8/10/12

70

DSB-MBC-01-1200

1200

24x7.5x8/10/12

80

DSB-MBC-01-1300

1300

24x8.0x8/10/12

88

DSB-MBC-01-1350

1350

24x8.0x8/10/12

88

DSB-MBC-01-1400

1400

24x8.5x8/10/12

96

DSB-MBC-01-1600

1600

24x9.0x8/10/12

104/108

DSB-MBC-01-1800

1800

24x9.5x10/12

120

DSB-MBC-01-2000

2000

24x10.5x10/12

128


The following are the different shapes design of diamond segments:


DSMB-01

Box Shape, 24mm Length


DSMB-02

Taper Shape, 24mm Length


DSMB-03

40mm Length


DSMB-04

W Top (Easy opening)




DSMB-05

Matrix Design




The above specifications & photo is for reference, other Specifications may be available as per demand.


Remarks:


Marble block saw blade refers to diamond saw blades used for marble block cutting purpose. They are in bigger diameters from 900mm to 2000mm mostly, in which the most popular blade diameter are 900mm, 1200mm and 1600mm for cutting tiles from 30x30cm to 60x60cm, which is more required from the market.

Diamond segments for marble block cutting are mostly in yellow color which is the main color of copper based metal bond, some are silver color based on cobalt bond, and there is soft to harder bond for cutting different hardness of marbles. It also works for limestone, travertine and other soft stones. As per steel blank design, there is 40mm length segments and 24mm length segments for choice. Marble block cutter segments mostly cuts for long, so the segment height is generally in 8mm and 10mm, and some customers prefer 13mm height for single blade block cutter.

Diamond blade for marble block cutting is mostly used on bridge block cutter with a horizontal blade to cut the bottom of slabs or strips from the marble block. Most of the marble block cutter is equipped with a horizontal block cutter at diameter of 350mm, 400mm or 500mm.
