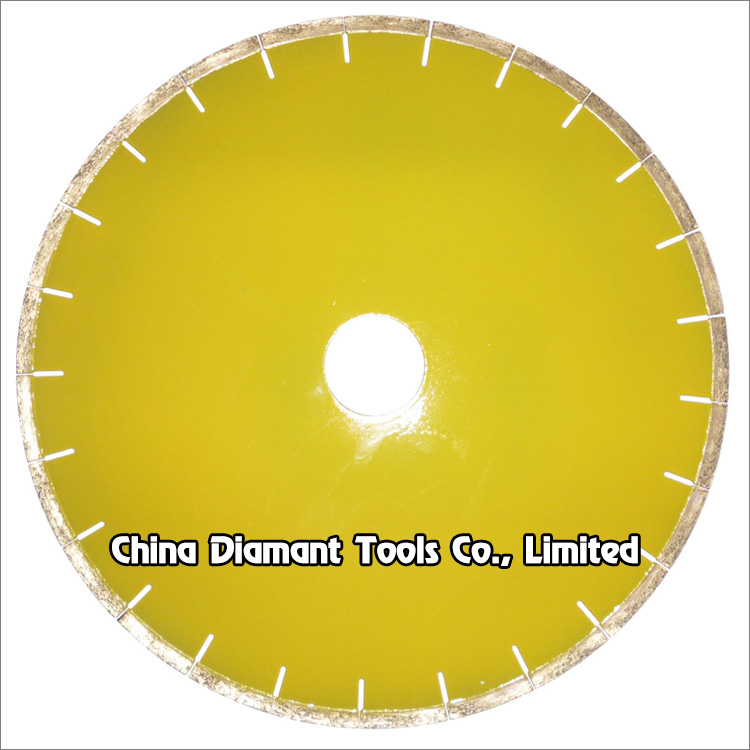

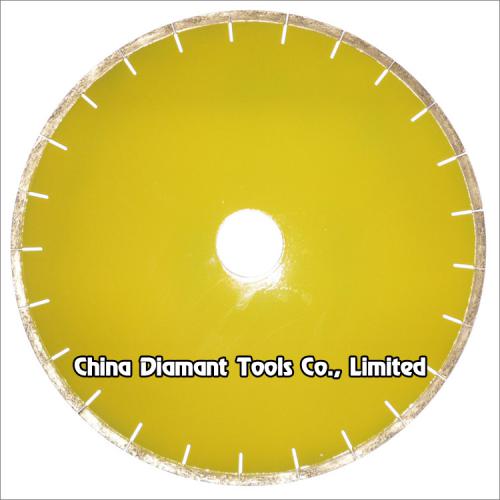

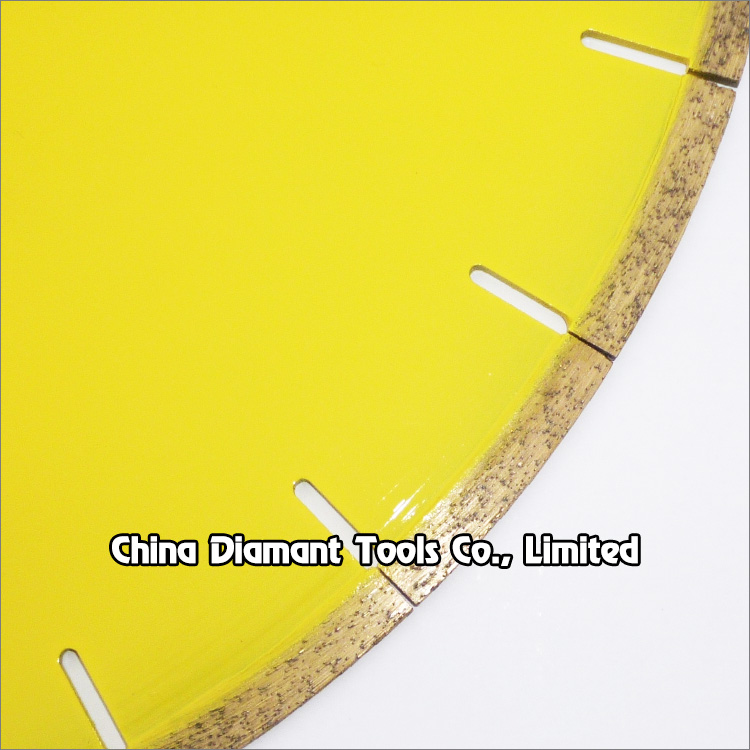

Diamond saw blades for marble slab cutting - fanlike segments(continuous rim type)
Diameter: 250-800mm
Bore: 50mm,60mm
Body type: normal or silent
Segment height: 8mm,10mm
Material cutting: marble,soft stone
Segment structure: sandwich
Production process: high-frequency welded.
Diamond saw blades for marble slab cutting - fanlike segments(continuous rim type)
Diamond saw blades with 8mm or 10mm height fanlike shape segments for slab edge cutting of marble, limestone, slate, various soft stones without quartz, cutting slabs to tiles or as per order request.

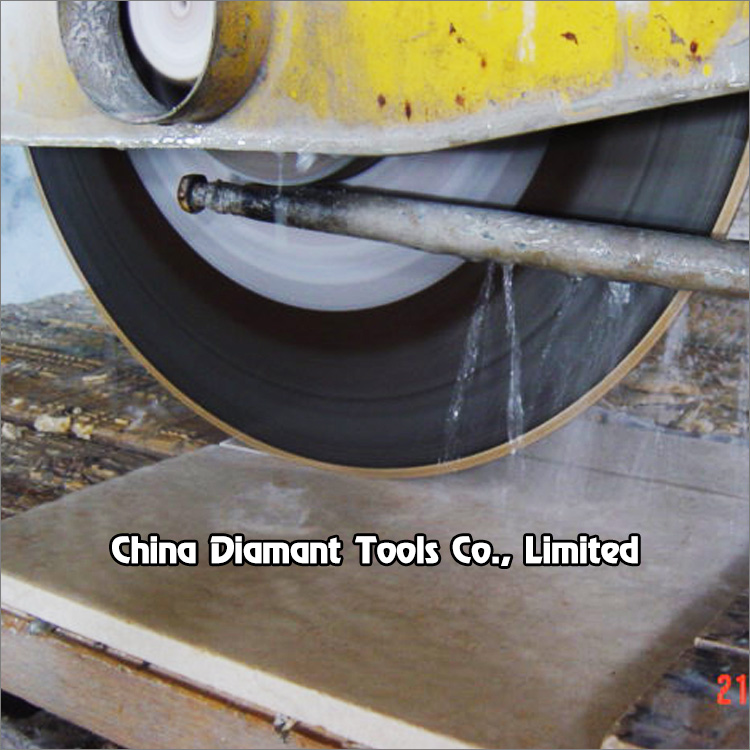

The blades are mostly used on manual edge cutting machines, bridge cutting machines or table cutting machines.
Wet use only with sufficient water.
Segment height: 8mm, 10mm.
Steel core type: silent or non-silent(normal).
Bore size: 50/60mm, or as per demand.
Welding method: high-frequency welded.
|
Code No. |
Diameter (mm/Inch) |
Segment Height (mm) |
Segment No. (pcs/set) |
|
SBEM-02-250 |
250mm(10") |
8/10 |
18 |
|
SBEM-02-300 |
300mm(12") |
8/10 |
21 |
|
SBEM-02-350 |
350mm(14") |
8/10 |
24/25 |
|
SBEM-02-400 |
400mm(16") |
8/10 |
28 |
|
SBEM-02-450 |
450mm(18") |
8/10 |
32 |
|
SBEM-02-500 |
500mm(20") |
8/10 |
36 |
|
SBEM-02-550 |
550mm(22") |
8/10 |
38 |
|
SBEM-02-600 |
600mm(24") |
8/10 |
42 |
|
SBEM-02-625 |
625mm(25") |
8/10 |
44 |
|
SBEM-02-725 |
725mm(28") |
8/10 |
50 |
|
SBEM-02-750 |
750mm(30") |
8/10 |
52 |
|
SBEM-02-800 |
800mm(32") |
8/10 |
46 |
The above specifications & photos are for reference, other specification may be available as per demand.
