Diamond milling wheels for stone granite - segments twisted

item No : DMW-02
Diameter: 50-100mm
Connection: M14,5/8"-11,1/2 gas
Segment size: 20/30*7*5mm
Diamond grit: coarse,medium,smooth
Production process: silver welded

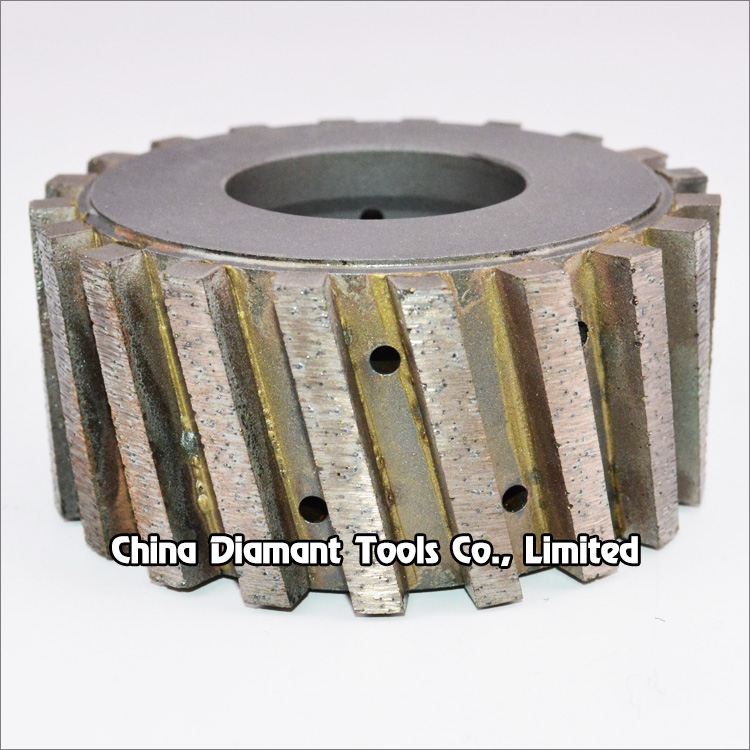

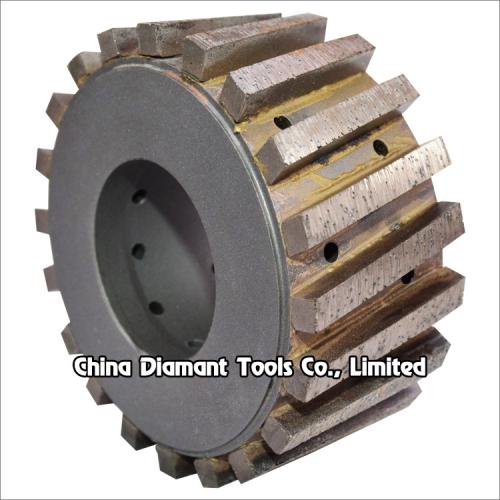

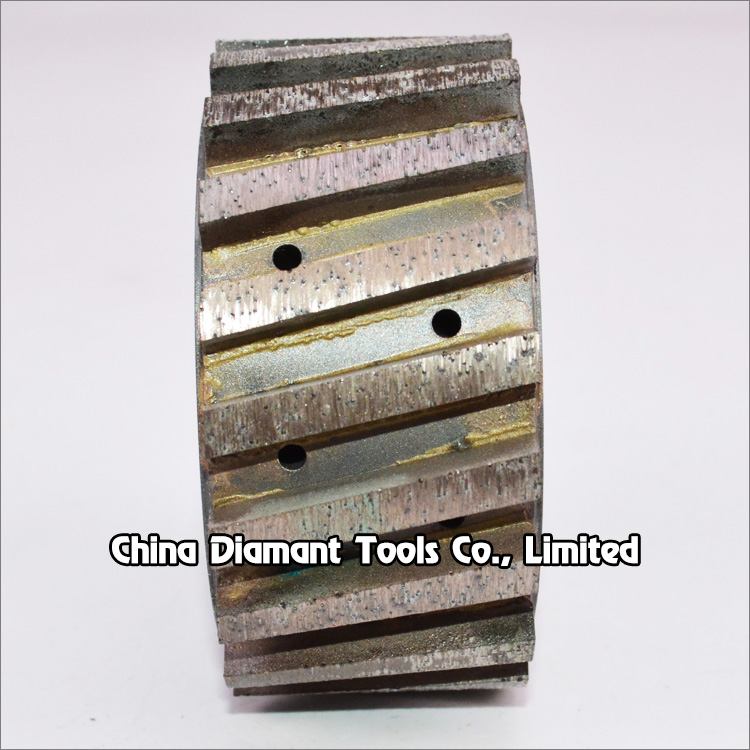

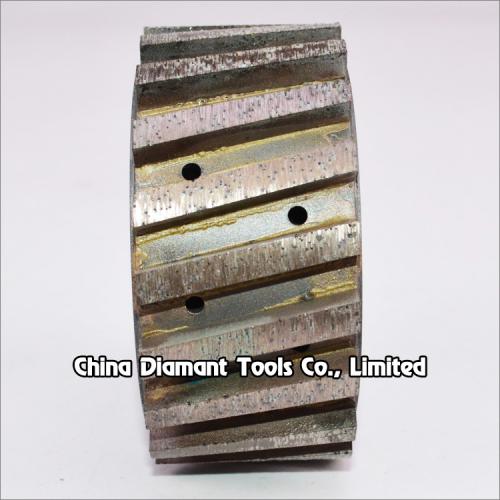

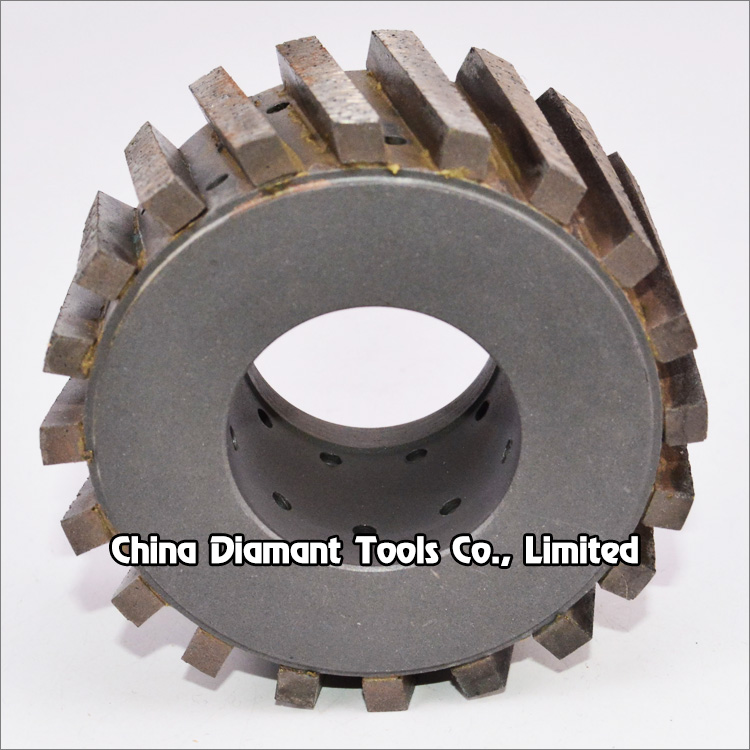

Diamond milling wheels for stone granite grinding - segments twisted


Diamond milling wheels segments twisted type are designed for stone edging and shaping with high merits, especially work well for surface milling and material removal on granite marble and other various stone materials or calibrating the thickness of the countertop where it overhangs the cabinets.

They are usually used on hand held grinding machines, router machines or under the conduction of CNC machines, and have high processing efficiency, long grinding life and easy dust removal.

Wet use only.


Regular diamond grit: coarse(#30/40), medium(#60/80), smooth(#100/120).


Code No.

Diameter

Segment Size

Joint Arbor

DMW-02-050

50mm(2")

20*7*5mm

30*7*5mm

or

as per demand

M14

5/8"-11

1/2 Gas

(CNC)

DMW-02-075

75mm(3")

DMW-02-085

85mm(3.35")

DMW-02-100

100mm(4")


The above specifications & photos are for reference, other specification may be available as per demand.
