Diamond milling calibrating wheels for stone granite - steel core
Diameter: 100-450mm
Connection: 25.4mm,50mm,60mm
Segment length: 20-40mm
Diamond grit: coarse,medium,smooth
Body: steel core
Production process: silver welded

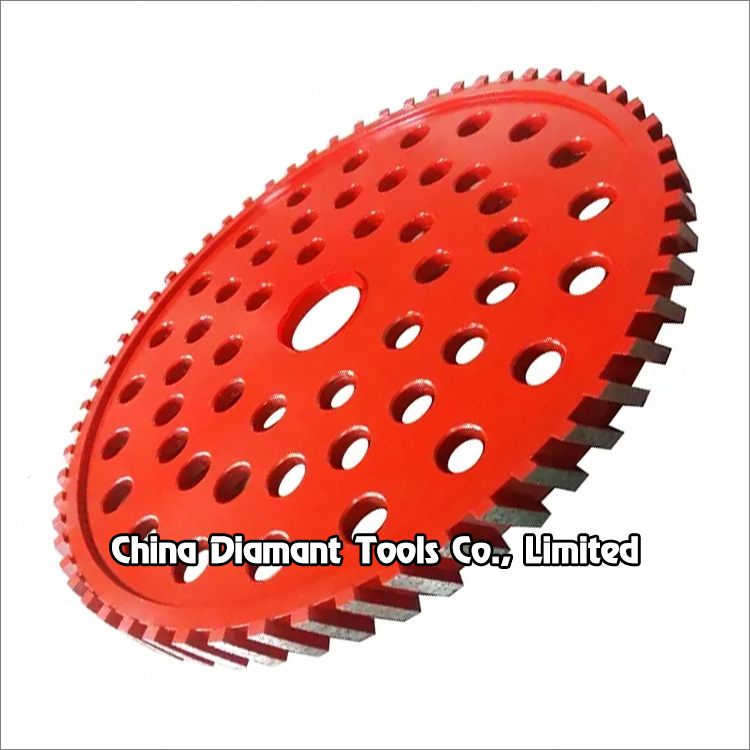

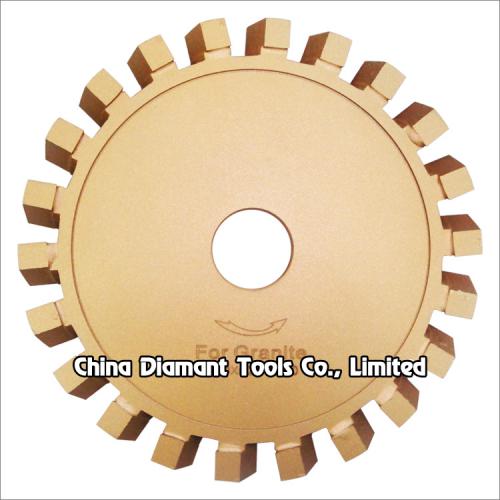

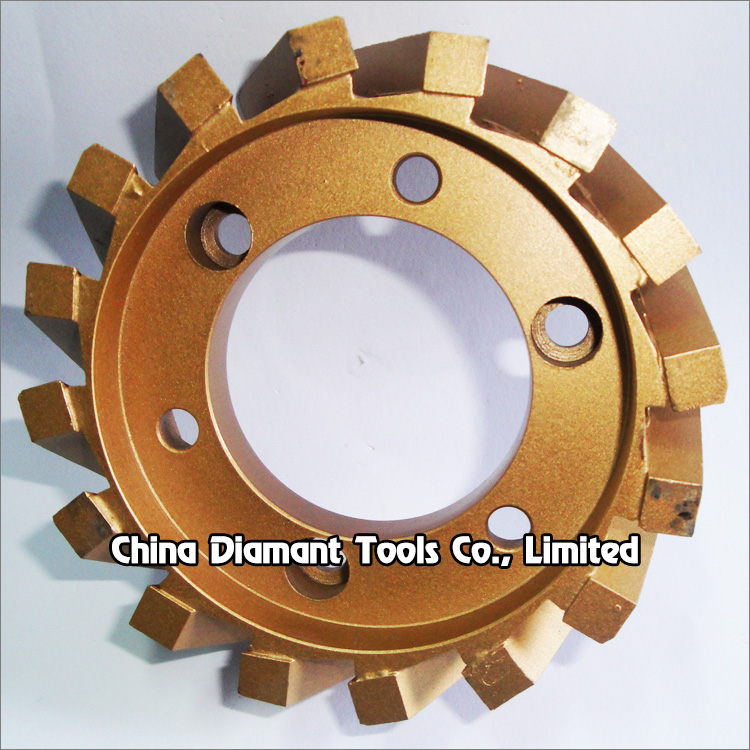

Diamond milling / Calibrating Wheels for Stone granite - steel core
Diamond segmented milling wheels with steel core are designed for stone edging and shaping with high merits, especially work well for surface calibrating and material removal on granite marble and other various stone materials.
They are usually used on bridge saw machines, stationary saws, milling machines or under the conduction of CNC machines with high processing efficiency, long grinding life and easy dust removal.
Wet use only.
Steel core with holes for less weight & coolant is available.
Regular diamond grit: coarse(#30/40), medium(#60/80), smooth(#100/120).
|
Code No. |
Diameter |
Segment Length |
Bore Size |
|
DMW-03-100 |
100mm(4") |
20mm 25mm 30mm 35mm 40mm or as per demand |
25.4mm 50mm 60mm CNC 1/2 Gas Coupling |
| DMW-03-125 | 125mm(5") | ||
|
DMW-03-150 |
150mm(6") |
||
|
DMW-03-250 |
250mm(10") |
||
| DMW-03-300 | 300mm(12") | ||
| DMW-03-350 | 350mm(14") | ||
| DMW-03-400 | 400mm(16") | ||
|
DMW-03-450 |
450mm(18") |
The above specifications & photos are for reference, other specification may be available as per demand.
