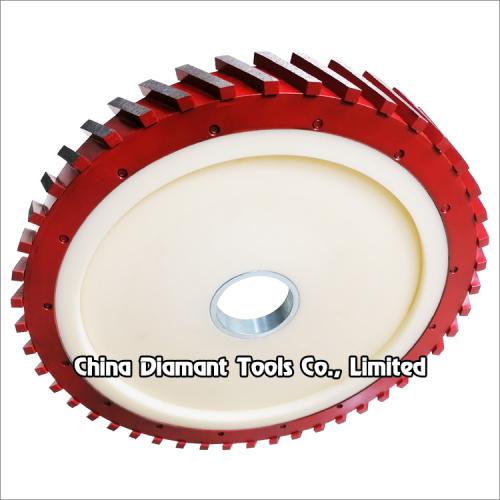

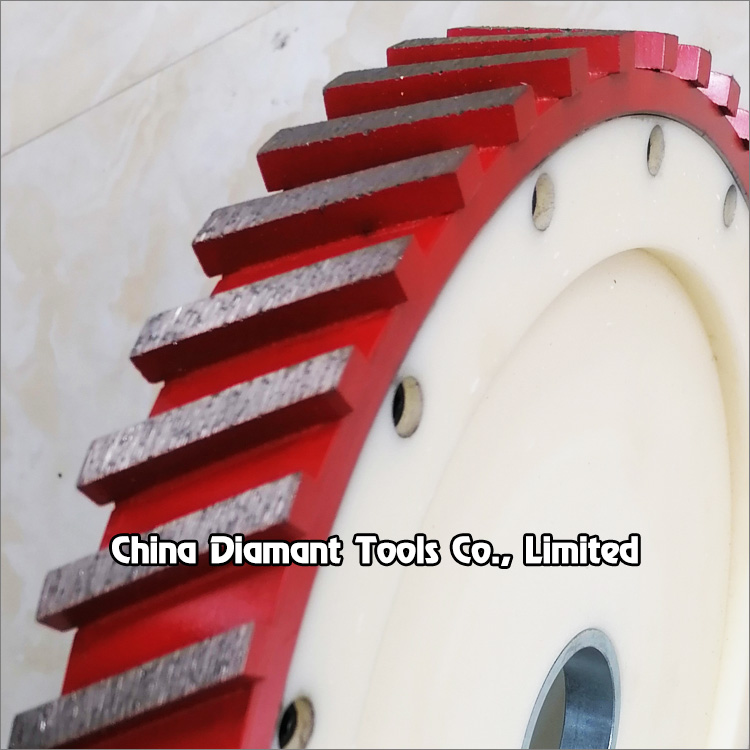

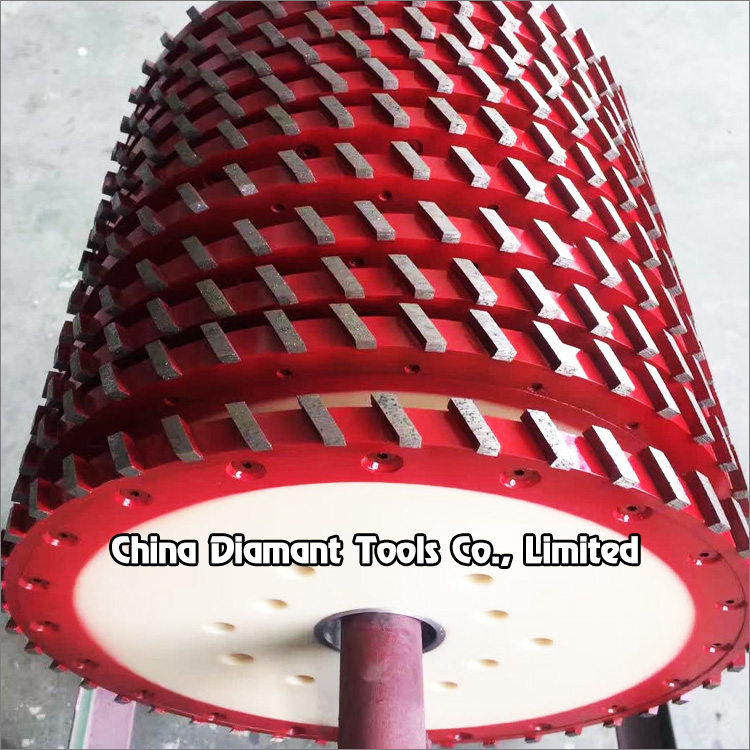

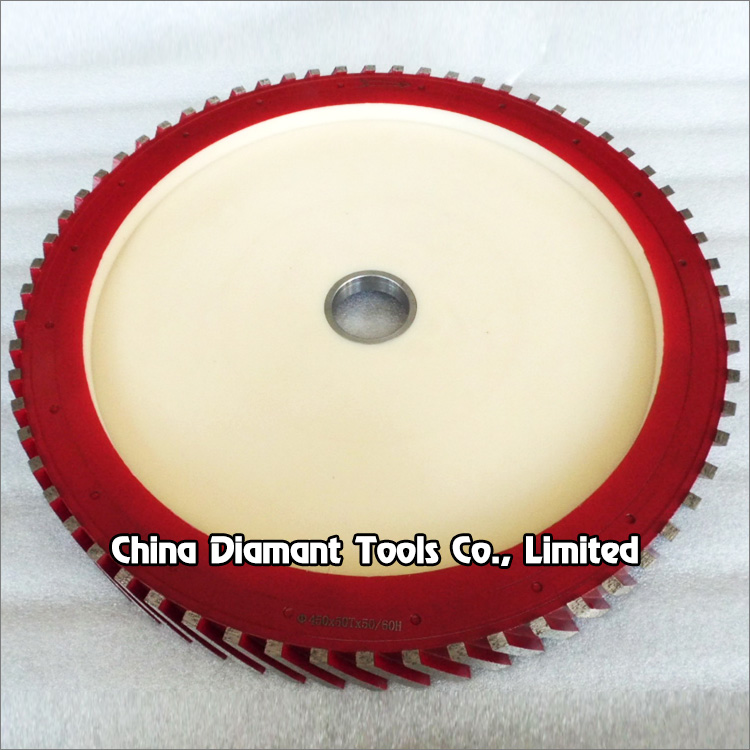

Diamond milling calibrating wheels for stone - silent core

item No : DMW-04
Diameter: 300-450mm
Connection: 25.4mm,50mm,60mm
Segment length: 30-50mm
Diamond grit: coarse,medium,smooth
Body: silent core
Production process: silver welded

Diamond milling / calibrating wheels for stone - silent core (steel/aluminum & nylon materials)


Diamond segmented milling wheels with silent core are designed for stone edging and shaping with high merits, especially work well for surface calibrating and material removal on granite marble and other various stone materials.

Silent diamond calibrating wheels are usually mounted on bridge saw machines, milling machines or line machines with high processing efficiency, long grinding life, easy dust removal and low noise.

Wet use only.



Advantage:
1. Reduce noise efficiently;
2. Aggressively Mill granite and natural stone slabs and levels concrete table;
3. High performance diamonds for maximum longevity.


Regular diamond grit: coarse(#30/40), medium(#60/80), smooth(#100/120).


Code No.

Diameter

Segment Length

Bore Size

DMW-04-300

300mm(12")

30mm

35mm

40mm

50mm

or

as per demand

25.4mm

50mm

60mm

or

as per demand

DMW-04-350 350mm(14")
DMW-04-400 400mm(16")

DMW-04-450

450mm(18")


The above specifications & photos are for reference, other specification may be available as per demand.
