Diamond saw blades for general purpose cutting - diagonal turbo segments with V slots
Diameter: 105-230mm
Bore: 20/22.23/25.4mm
Segment height: 10mm
Segment type: diagonal turbo with V slots
Production process: laser welding

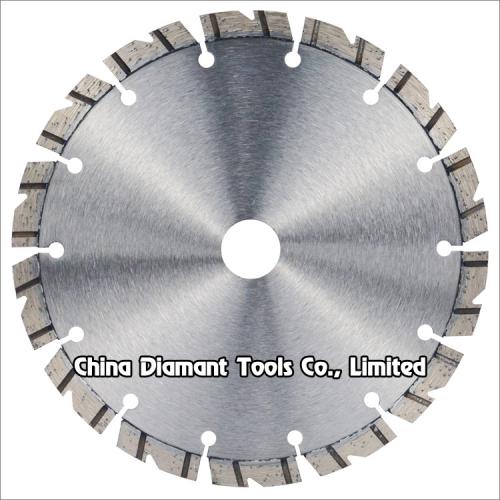

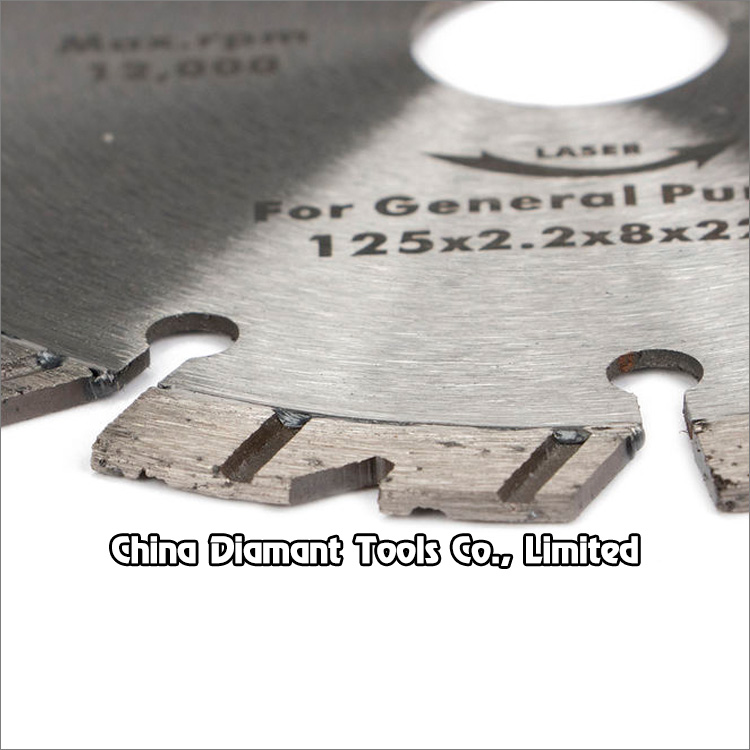

Diamond saw blades for general purpose cutting - laser welded, diagonal turbo segments with V slots
General purpose diamond saw blades with diagonal turbo & V slot segments for fast cutting various material such as concrete, asphalt, brick, block, masonry, granite, marble and other materials, which is a good choice for do-it-yourself contractors or homeowners who need a single blade to cut several different types of material.
Dry or wet use, water coolant is benefit for longer cutting life.
Usually used on: angle grinders, table saws, high speed power saws, masonry saws, walk behind saw, handheld saw machines.
Bore size: 25.4mm, 50mm, 60mm or as per demand
Welding method: laser welded.
| Code No. |
Diameter (mm/inch) |
Segment Size (mm) |
Segment No. (pcs/set) |
| SBGP-04-105 |
105mm(4") |
40x2.2x10 |
8 |
| SBGP-04-115 |
115mm(4.5") |
40x2.2x10 |
9 |
| SBGP-04-125 |
125mm(5") |
40x2.2x10 |
10 |
| SBGP-04-150 |
150mm(6") |
40x2.2x10 |
12 |
| SBGP-04-180 |
180mm(7") |
40x2.4x10 |
14 |
| SBGP-04-200 |
200mm(8") |
40x2.8x10 |
16 |
| SBGP-04-230 |
230mm(9") |
40x2.8x10 |
18 |
The above specifications & photos are for reference, other specification may be available as per demand.
