Diamond saw blades for general purpose cutting - laser welded, turbo segments

item No : SBGP-02
Diameter: 105-600mm
Bore: 25.4/50/60mm
Segment height: 10/12mm
Segment type: turbo segments
Production process: laser welding

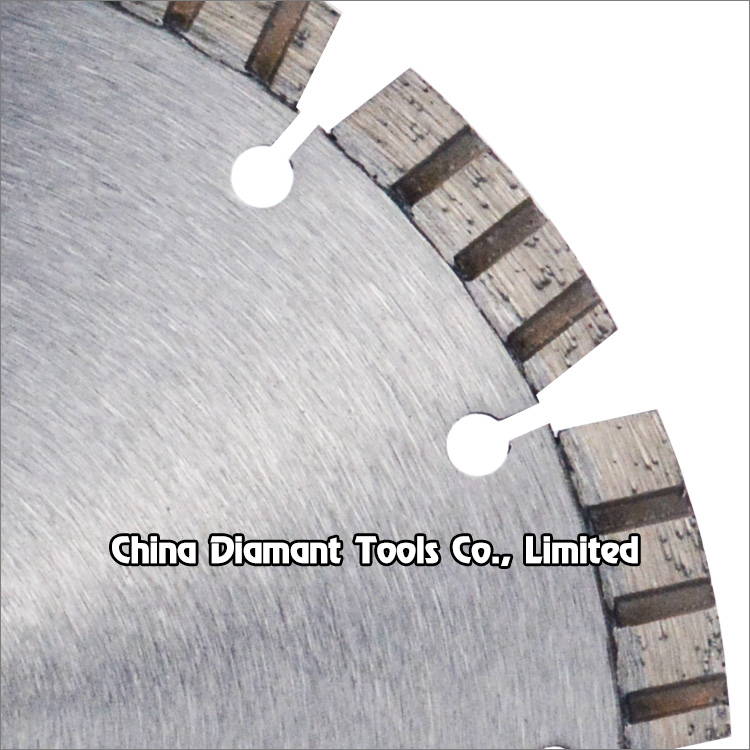

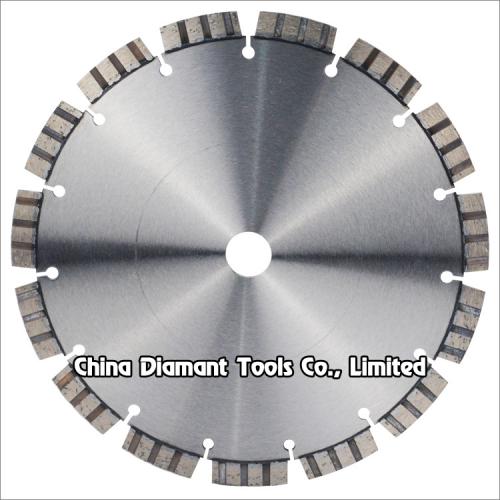

Diamond saw blades for general purpose cutting - laser welded, turbo segments


General purpose diamond saw blades with straight turbo segments for fast cutting various material such as concrete, asphalt, brick, block, masonry, granite, marble and other materials, which is a good choice for do-it-yourself contractors or homeowners who need a single blade to cut several different types of material.


Dry or wet use, water coolant is benefit for longer cutting life.

Usually used on: angle grinders, table saws, high speed power saws, masonry saws, walk behind saw, handheld saw machines.


Bore size: 25.4mm, 50mm, 60mm or as per demand

Welding method: laser welded.


Code No.

Diameter

(mm/inch)

Segment Size

(mm)

Segment No.

(pcs/set)

SBGP-02-105

105mm(4")

40x2.2x10

8

SBGP-02-115

115mm(4.5")

40x2.2x10

9

SBGP-02-125

125mm(5")

40x2.2x10

10

SBGP-02-150

150mm(6")

40x2.2x10

12

SBGP-02-180

180mm(7")

40x2.4x10

14

SBGP-02-200

200mm(8")

40x2.8x10

16

SBGP-02-230

230mm(9")

40x2.8x10

18

SBGP-02-250

250mm(10")

40x3.0x10/12

18

SBGP-02-300

300mm(12")

40x3.0x10/12

21

SBGP-02-350

350mm(14")

40x3.2x10/12

24

SBGP-02-400

400mm(16")

40x3.6x10/12

28

SBGP-02-450

450mm(18")

40x4.0x10/12

32

SBGP-02-500

500mm(20")

40x4.2x10/12

36

SBGP-02-550 550mm(22") 40x4.2x10/12 38
SBGP-02-600

600mm(24")

40x4.6x10/12

42


The above specifications & photos are for reference, other specification may be available as per demand.
