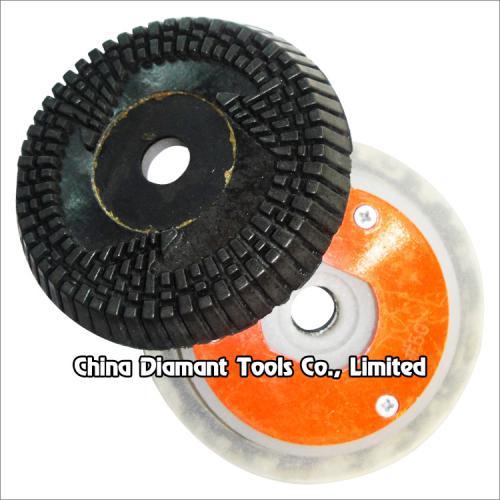

Edge polishing diamond pads chamfering wheel for stone - oblique angled

item No : EPP-03-100
Diameter: 100mm
Bond type: resin
Shape design: oblique angled
Thickness: 3mm
Grit: #50-#3000
Holder: snail lock backer
Using type: wet

Edge polishing diamond pads chamfering wheel for stone - oblique angled, wet use


This resin bond oblique angled diamond pads with snail Lock backer designed for polishing straight or beveled edge of natural or artificial stone by single or multiple head automatic edge polishing machines, side-lines and circles grinding machine with high glossy degree.


It is usually used to edging and chamfering the countertop and arc slabs.

It only requires up to the 3000 grit to successfully polish edges. It does not change in the color of the stone itself, with glazing fast, good brightness and not fade.

Wet polishing with water feeding.


The pads backed with common snail lock adapter which can be easily installed and quick changed on the polishing machines. The pads simply fit into place and lock on with a twisting motion. To remove the pads simply untwist and remove, then replace with the next grit. The “twist and lock” design saves time and increases productivity.


Diamond grit No.: 50#, 100#, 200#, 400#, 800#, 1500#, 3000#, Buff.

Holder: snail lock.

Resin working thickness: 3mm.


Code No.

Diameter

Degree Grit No.
EPP-03-100-60

100mm(4")

60°

50# - 3000#,

Buff

EPP-03-100-45 100mm(4") 45°


The above specifications & photos are for reference, other specification may be available as per demand.
